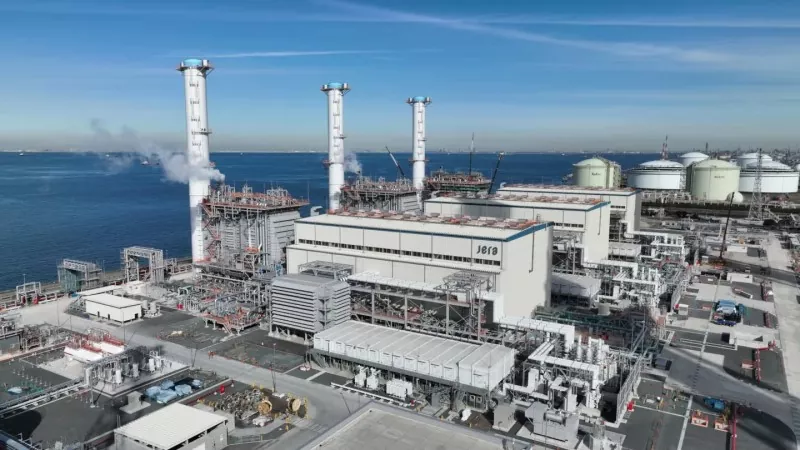

Thermal Power Plant Steel Frame

Thermal Power Plant Steel Frame ndeye inotakura-inotakura simbi sisitimu yakagadzirwa yakanyatso kudziya magetsi emagetsi, anoshandiswa kutsigira inorema michina senge boilers uye turbo-jenareta seti, pamwe nekushanda sechimiro chezvivakwa zvikuru. EIHE Steel Structure (EHSS) igadziri yesimbi ine tekinoroji yepamusoro. Tine ruzivo mumapurojekiti emagetsi enyukireya, ayo anosangana nemaitiro akasimba ezvidyarwa zvemagetsi ekupisa.

Send Inquiry

Product Description

Thermal Power Plant Steel Frame inonyanya kuve nechikamu chesimbi uye mahwendefa esimbi, anoshanda seyepakati anotakura weinjiniya yehurumende uye kuisirwa kwemidziyo mumagetsi emagetsi anopisa. Zvigadzirwa zvinogadzirwa nefekitari yedu zvinoratidzira zvakawanda zvakanaka senge kusimba kwepamusoro, kureruka kuzvirema, zvakanakisa seismic uye mhepo kuramba, pamwe nekuputika-kusaputsika uye kusaita ngura.

Zvigadzirwa zvedu zvesimbi zvekugadzira zvinonyanya kushandiswa mune maviri epakati masisitimu.

▷ Boiler simbi chimiro: yakazvimiririra simbi chimiro chinoshandiswa kumisa uye kutsigira simbi yemidziyo.

▷ Main simba imba simbi chimiro: huru chivako chimiro chinogara turbo-jenareta zvikamu, makamuri ekudzora uye zvimwe zvivakwa.

Thermal Power Plant Steel Frame

Zvigadzirwa zvemagetsi zvinopisa zvine zvinodiwa zvakanyanya maererano nezvinhu, dhizaini nekudzivirira. Kuti usangane nezviyero zvepamusoro zveaya masisitimu maviri, EHSS inosarudza simbi yemhando yepamusoro uye inonamira kukosha kukuru kune isingapinde mumoto uye anti-corrosion dhizaini kuvaka yako Thermal Power Plant Steel Frame.

Fireproof Coating	Coating Ukobvu	Moto Resistance Limit	Features	Application Scenarios
Intumescent	<5mm	1.5-2.0 maawa	Zvine hunyoro hwepamusoro nehumwe hwekushongedza	Indoor application kana mapurojekiti ane aesthetic zvinodiwa
Non-intumescent	>10mm	2.0-3.0 maawa	Yakakasharara pamusoro nekusimba kwakanaka	Zvishandiso zvekunze kana nzvimbo dzine njodzi yemoto

Anticorrosive Coating	Coating Ukobvu	Core Function	Layer
Epoxy Zinc-yakapfuma Primer	70-80μm	Cathodic kudzivirira	Primer layer
Epoxy Micaceous Iron Oxide Yepakati Coat	80-125μm	Barrier insulation	Pakati pepakati
Polyurethane Pamusoro Coat / Fluorocarbon Pamusoro Coat / Chlorinated Rubber Paint	60-80μm	Kuramba kwemamiriro ekunze, kuramba midhiya nekushongedza	Top layer

Thermal Power Plant Steel Frames inoda mhinduro dzakasiyana dzekuchengetedza mamiriro akasiyana, nekuda kwekusiyana kwenzvimbo dzine njodzi huru dziripo muzvidyarwa zvemagetsi zvinopisa.

Application Scenario	Features	Coating System	Hukuru Hwose
Indoor Main Power Plant Kuvaka	C3 Environment	Epoxy Zinc-rich Primer (60μm) + Epoxy Micaceous Iron Oxide Yepakati Coat (80μm) + Polyurethane Top Coat (80μm)	≥220μm
Kunze Boiler Steel Frame	C5-M Nzvimbo	Epoxy Zinc-rich Primer (80μm) + Epoxy Micaceous Iron Oxide Yepakati Coat (120μm) + Fluorocarbon Yepamusoro Coat (100μm) + Gobvu Firimu Risingapindi Pamoto Coating	≥300μm
Coal Handling System	High Humidity / Abrasion	Epoxy Zinc-rich Primer (75μm) + Yepamusoro-Build Epoxy Intermediate Coat (150μm) + Abrasion-Resistant Polyurethane Top Coat (100μm)	≥325μm
Flue Duct / Condensation Zone	Asidhi yakasimba	High-Temperature Resistant Phenolic Epoxy Primer (100μm) + Phenolic Epoxy Flake Coating (200μm)	≥300μm

Process Flow

Yedu Thermal Power Plant Steel Frame zvigadzirwa zvinounzwa kuburikidza ne5 makiyi maitiro:

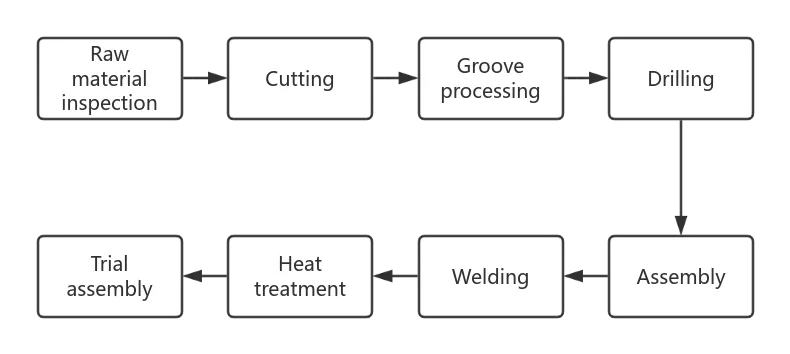

1. Kugadzirwa

Fabrication

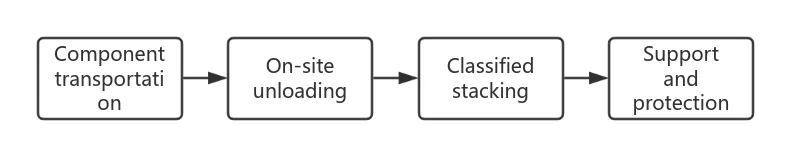

2. Kutakura & Kuchengeta

Transportation & Storage

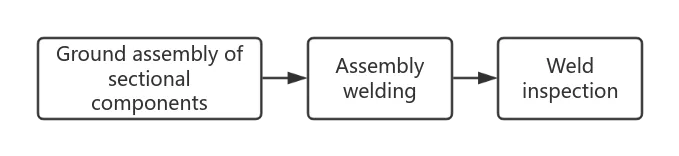

3. Pa-saiti Gungano

On-site Assembly

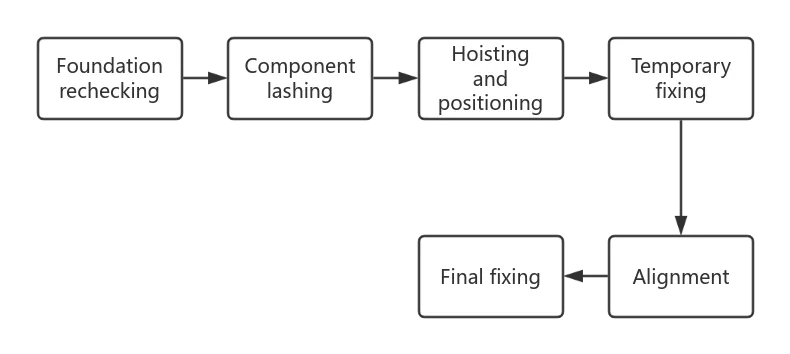

4. Hoisting & Installation

Hoisting & Installation

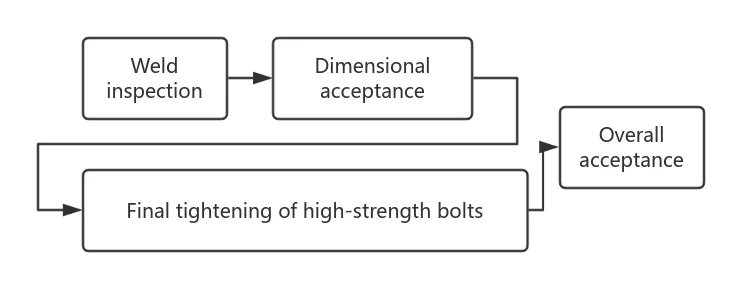

5. Kugamuchirwa Kwehutano

Quality Acceptance

Kana wapedza maitiro aya, yako Thermal Power Plant Steel Frame ichave yakagadzirira sevhisi mukati memwedzi miviri kusvika mitatu.
