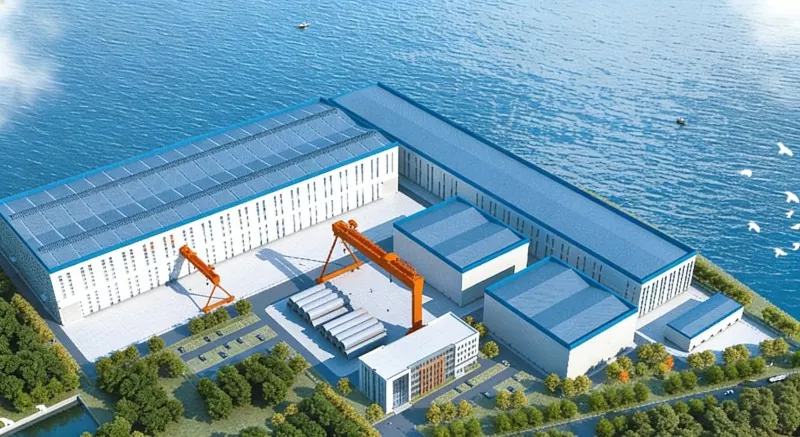

Steel Structure Offshore Wind Power Factory

Simbi chimiro offshore wind power fekitori zvivakwa zvinoreva anorema maindasitiri mafekitori akagadzirirwa kugadzirwa offshore mhepo mhepo michina. Chimiro chavo chikuru chakagadzirwa nesimbi, uye ivo vanowanzo wanikwa pamahombekombe zviteshi kana docks kusangana nekugadzirwa, kuungana uye zvekufambisa zvinodiwa zvezvakanyanya kukura uye zvinorema zvikamu.

Fekitori yedu yeChinese yakapa zvigadziriso zvesimbi kune akawanda offshore mhepo magetsi mapurojekiti uye ndeimwe yemhando yepamusoro simbi simbi vatengesi muChina.

Chimiro chimiro

● Heavy steel truss structure: Iyi ndiyo inonyanya kuzivikanwa fomu.

● Heavy portal frame: Inokodzera kugadzirwa kwakawanda kana magungano emusangano.

● lSteel truss uye mambure furemu zvimiro: Inoshandiswa kune yakakurisa-span kana mafekitori anoshanda.

Corrosion resistance uye wind resistance design

● Corrosion protection system: Sezvo izvi zvivakwa zveindasitiri zvakavakwa pedyo negungwa, nharaunda yakapoteredza ine hunyoro uye kune mamwe mamiriro ekunze akanyanyisa. Iko kurapwa kwepamusoro kwesimbi kunotora inorema corrosion kudzivirira coating system.

● Kurwisana nemhepo: Chivako chacho pachacho chinoda kugadzirwa maererano nemhepo yekutakura miyero ye50 kana 100 makore kamwe muzana muzana munzvimbo dzemahombekombe kuti ive nechokwadi chekuchengetedzwa kwemaitiro mumamiriro ekunze akanyanyisa.

Izvo zvikamu zvehutano zvechigadzirwa

Main chimiro

● Kazhinji, mbiru dzesimbi dzelattice dzinogamuchirwa. YeSimbi dhizaini yekumahombekombe emhepo fekitori yemagetsi ine kureba kwakakura uye inorema crane tonnage, lattice simbi makoramu ane yakakura kubhenda simba uye anogona kutsigira huremu hwekoramu crane.

Crane beam system

● Crane matanda anowanzo shandisa high-simba welded solid-web I-matanda, ane simba regoho rinowanzosvika 355Pa kana 390Pa.

Tsigira system

● Inter-column inotsigira inogona kugadzirwa nesimbi yakaita seH, simbi yemakona uye machubhu akapoteredza, kazhinji ari mufomu X.

● Horizontal zvitsigiro zvichange zvakarongeka padenga kuendesa simba rakachinjika redenga.

● Hurongwa hunowanzorongedzerwa kumusoro kwembiru, nechinangwa chekudzivirira kugadzikana kwemasimba pakati pemapuranga esimbi.

Enclosure chimiro

● Purlins inowanzoshandisa high-frequency welded H-shaped steel kana C-shaped steel.

● Mapango emadziro anonyanya kuve simbi yakaita seH kana yakakura C-yakaita simbi, uye inobatanidzwa nekutsvedza kuti ienderane neiyo lateral deformation yechimiro chikuru pasi pemhepo inotakura kana tembiricha mhedzisiro.

Parameter (Spication)

Product case

Iyo Lishan hombe-megawati yemhepo yemhepo purojekiti, iyo yakabatanidzwa pamwe chete neEIHE Steel Structure, ndiyo hombe-imwe-offshore mhepo simba repurojekiti ine mutengo wakaenzana muChina uye hombe yemhepo mhepo cluster kuchamhembe kweChina. Iri munzvimbo yekumaodzanyemba kwegungwa reLishan Guta, Weihai Guta, Shandong Province. Chirongwa chese chakakamurwa kuita nzvimbo mbiri dzakazvimiririra, U1 neU2, ine huwandu hwakaiswa hwakazara hwe150 megawatts (1.5GW).
