Portal Frame Station Simbi Kuvaka

Portal Frame Chiteshi Simbi Kuvaka chivakwa chesimbi-chakamisikidzwa chiteshi chinotora mafuremu epa portal sechinhu chikuru chinotakura zvinhu, kunyanya kushandira zviteshi zvidiki uye zvepakati nepakati. EIHE Steel Structure (EHSS) yakazvipira kugadzira zvigadzirwa zvemhando yepamusoro zvekuvaka simbi. Tine ruzivo rwakakura rweprojekiti mumunda wezvivakwa zveveruzhinji, isu tiri premium mutengesi wesimbi zvivakwa zvekugadzira indasitiri yekufambisa.

Send Inquiry

Product Description

Portal Frame Chiteshi Simbi Kuvaka ndeye njanji yekufambisa chiteshi kuvaka mhinduro inotora yakasimba-web portal rigid furemu sisitimu seyayo huru-inotakura skeleton.

Yakagadzirwa nekubatana kwakasimba pakati pembiru dzesimbi uye denga resimbi matanda kugadzira maforemu-akaita portal, chigadzirwa ichi chinogonesa hombe-span column-yemahara nzvimbo, ichipa mabhenefiti ekuvaka emabheji akafara, yakakwirira yakajeka uye nekukurumidza kuvaka kwezvivakwa zvechiteshi.

Zvichakadaro, zvigadzirwa zvedu zvine simba repakati zvinosanganisira kuita kwakanakisa kwemaitiro, kushanda zvakanaka kwehupfumi uye hushamwari hwezvakatipoteredza, izvo zvinonyatso kuzadzisa zvinodiwa uye zvinofarirwa zvezvivakwa zvidiki uye zvepakati nepakati.

Kuenzaniswa nezvimiro zvekongiri zvechinyakare, iyo Portal Frame Chiteshi Simbi Kuvaka yakagadzirwa nefekitari yedu ine mabhenefiti anoshamisa mune akawanda maficha ezvivakwa zvenjanji.

Kuenzanisa Chinhu	Portal Frame Simbi Kuvaka	Yakasimbiswa Concrete Structure
Structural Self-Weight	Chiedza	Heavy
Nguva yekuvaka	Pfupi	Kureba
Industrialization Level	High	Low
Column Grid Layout	Flexible	Restricted
Comprehensive Economic Benefit	High	Avhareji
Seismic Performance	Excellent	Avhareji

Iyo portal yakaomesesa furemu yemaitiro sisitimu ine akati wandei kupatsanura, pakati payo yakasimba-web portal rigid furemu ndiyo yakanyatsokodzera rudzi rwedu Portal Frame Station Steel Kuvaka chigadzirwa. Zvichakadaro, isu tinogona zvakare kugadzirisa zvigadzirwa zvemamwe marudzi ezvimiro zvako.

Rudzi rweChimiro	Structural Features	Application Scenarios
Solid-web Portal Rigid Frame	Welded H-simbi / inopisa-yakakungurutswa H-simbi, yakasimba danda-column zvinongedzo	Zviteshi zvakajairwa, canopies, madhiri emotokari
Corrugated-web Portal Rigid Frame	H-simbi ine marata edandemutande achitsiva flat webs	Mapurojekiti makuru-akareba, zvinodiwa zvekuchengetedza zvinhu
Lattice Portal Rigid Frame	Truss-mhando matanda uye makoramu ane yakakwirira simba-kubereka kunyatsoshanda	Super-hombe-span uye inorema-mutoro mamiriro
Multi-span Portal Rigid Frame	Kuenderera mberi kurongeka kwe2-3 spans, hapana cranes	Multi-track madhipatimendi emotokari

Uye zvakare, yedu Portal Frame Chiteshi Simbi Kuvaka chigadzirwa chinoratidzira akasiyana makuru makuru ekushandisa mamiriro, kunyanya kuvhara:

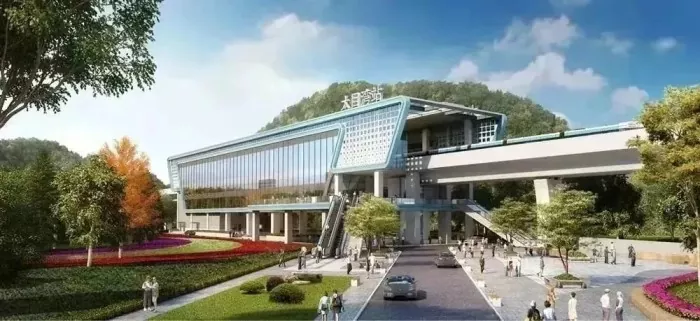

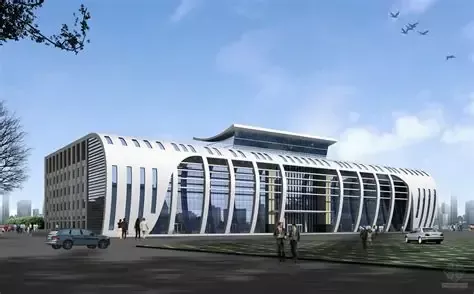

▷ Chivako cheChiteshi chakakwirira

▷ Column-isina Platform Canopy

▷ Chitima Kudzika & Kuongorora Depot yeRolling Stock Yard

▷ Maintenance Depot yeRolling Stock Yard

▷ Metro Parking Yard

Yedu Portal Frame Chiteshi Simbi Kuvaka chigadzirwa chinonyanya kuve nezvikamu zvitatu zvikuru: mafuremu akaomesesa, zvimiro zvechipiri uye masisitimu ekuvharirwa. Zvikamu zvaro zvakakosha zvinosanganisira:

Main Rigid Frame
Steel Column	Vertical load-bearing & lateral force resistance
Roof Steel Beam	Takura mitoro yedenga, yakasimba yakabatana nembiru
Haunch	Simbisa majoini uye uvandudze flexural kubereka kugona
Secondary Structure
Purlin	Tsigira mapaneru edenga uye dzivirira matanda flanges
Wall Beam	Tsigira madziro emadziro
Inter-column Bracing	Ita shuwa kuomarara kwelongitudinal uye kutamisa horizontal masimba
Enclosure System
Roof Panel	Kudzivirira mvura, kupisa kwekushisa uye kushongedza
Wall Panel	Enclosure uye thermal insulation

Project Experience

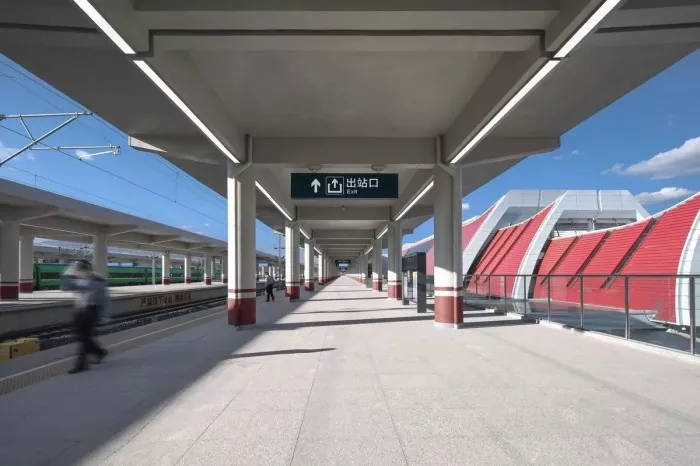

Rushannan Railway Station iri muRushan City, Shandong Province, China, yakajairikastation projectyakaitwa neEHSS. Nzvimbo yose yekuvaka yepurojekiti i10,000 square metres nekushandiswa kwesimbi kwematani 1,358. Iyo papuratifomu canopies inotora portal furemu chimiro, ichimiririra imwe yeyakajairwa mashandisirwo edu Portal Frame Station Simbi Kuvaka zvigadzirwa.

Portal Frame Station Steel Construction

Taura nesu

Zvidimbu zvehunyanzvi

Fekitori yedu inoshandisa inotonhora-yakaumbwa-yakaonda-madziro simbi ye purlins uye madziro matanda, profiled simbi mashizha ematenga nemadziro, uye inoronga nemazvo mabracing ekuvaka yakareruka chivakwa chivakwa sisitimu, inova portal rigid furemu chimiro. Iine zvimwe zvakanakira zvichienzaniswa nemamwe masisitimu esimbi.

Product Parameters

Product	Portal Frame Station Simbi Kuvaka
Steel Giredhi	Q235B / Q355B
Connection Type	Bolt-welded / Bolted
Span	12-36 m
Column Spacing	6 / 7.5 / 9 m
Eave Height	6-12 m / 8-15 m
Roof Slope	1:15
Seismic Resistance	Grade 8
Moto Resistance	Giredhi II
Upenyu Hwebasa	50 Makore

Kuenzanisa Kwemaitiro

Yedu Portal Frame Chiteshi Simbi Kuvaka inotora portal mafuremu, ichienzaniswa nemamwe masisitimu esimbi.

Kuenzanisa Dimension	Portal Rigid Frame	Steel Space Truss	Steel Truss	Steel Frame
Chimiro Form	Solid-web beam-column yakasimba kubatana	Spatial nhengo dzakabatana pamajoini	Ndege / nzvimbo truss	Beam-column frame
Span Capacity	12-36 m	30-100 m+	18-50 m	9-18 m pauriri
Steel Consumption	25-40 kg / m²	40-80 kg/m²	35-60 kg/m²	35-55 kg / m²
Kuvaka Speed	Fast	Pakati nepakati	Pakati nepakati	Fast
Inoshanda Height	Nyaya imwe chete	Nyaya imwe chete ine span yakakura	Nyaya imwe chete / yakawanda-nyaya	Multi-story
Station Application	Platform canopies, rolling stock depot	Station kuvaka matenga	Zvivako zvezviteshi zvakakura	Chimiro chikuru chezvivakwa zvechiteshi

Muchidimbu, yedu yakatangwa Portal Frame Station Steel Kuvaka chigadzirwa chakakodzera zvidiki- uye zvepakati-saizi chiteshi zvivakwa, zvine zvakasarudzika zvakanakira mukushandisa, kuita uye mutengo.

FAQ

Q1: Ndeipi nguva yekuvaka yekugadzirwa kwesimbi zvigadzirwa?

Yedu Portal Frame Simbi Kuvaka kunotora fekitori yekugadzira pamwe ne-on-saiti yegungano modhi, iyo inogona kupfupisa zvakanyanya nguva yekuvaka kusvika kumwedzi 2-3.

Q2: Iwe unobata sei corrosion nekudzivirira moto kune zvigadzirwa zvako?

Zvigadzirwa zvedu zvinoshandisa pendi (zinc-rich epoxy primer + epoxy micaceous iron intermediate coat + polyurethane topcoat) kana inopisa-dip galvanizing yekurapa-kuora, uye mabhanhire asingadziviriri moto kana bhodhi rinodzivirira moto kuitira kurapwa kwemoto.

Q3: Ungasarudza sei pakati peportal mafuremu uye simbi grid zvimiro?

Mumapurojekiti anoshanda, musanganiswa wemafiramu efodhi uye zvimiro zvegidhi zvinowanzo gamuchirwa; dzimwe sarudzo dzinotemerwa zvichienderana nezvinodiwa zvakasiyana uye mamiriro ekushandisa.

Scenario	Kurudziro	Zvakanakira
Platform Canopies, Depot Warehouses	Portal Frame	Inodhura-inoshanda, kuvaka nekukurumidza
Matenga Akareba eDzimba Dzinovaka Zviteshi	Steel Grid Structure	Zvimiro zvakasiyana-siyana, zvinokwanisa zvidimbu zvakakura

Q4: Ndeipi inofungidzirwa kushandiswa kwesimbi kwePortal Frame Station Steel Kuvaka?

Kushandiswa kwesimbi kwechigadzirwa kunonyanya kukanganiswa nespan, column spacing uye mitoro, iyo ichagadziriswa maererano nezvinodiwa chaizvo. Reference data ndeiyi inotevera:

Scenario	Steel Consumption
Platform Canopies, Diki Vehicle Depot	25-35 kg / m²
Maintenance Workshops, Hombe Vehicle Depot	35-50 kg / m²

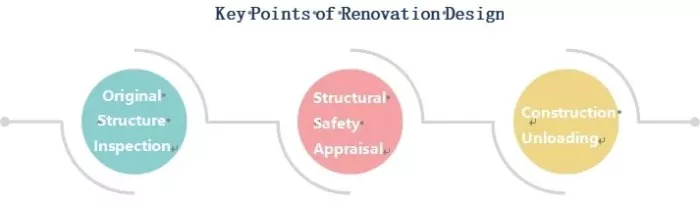

Q5: Kugadziridza kunogona kuitwa here?

Portal furemu zvimiro zvinogonesa kuchinjika kwekugadzirisa, zvichibvumira kuwedzerwa kwemezzanines, yakamiswa mitoro yemidziyo, yakawedzera spans uye yakawedzera kureba.

Portal Frame Station Steel Construction
