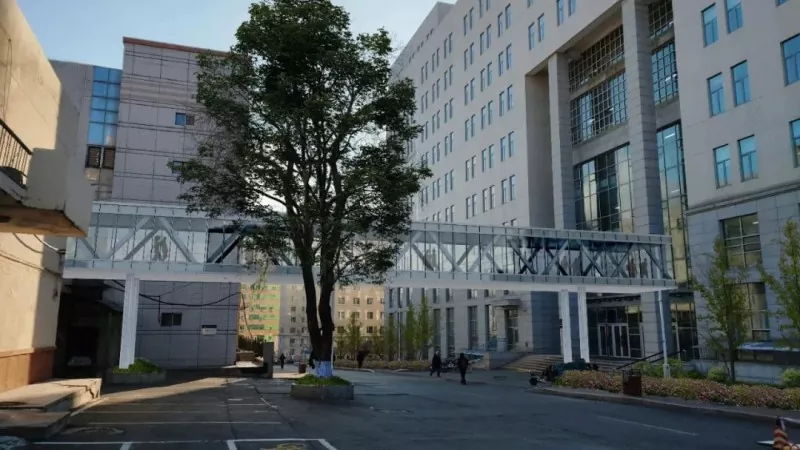

Steel Structure Campus Corridor

Simbi chimiro chekambasi corridor inzira yakasimudzwa inogadzirwa zvakanyanya nesimbi, inowanzo shandiswa kubatanidza zvivakwa zvakazvimirira senge zvivakwa zvekudzidzisa, canteens, uye dormitories, zvichibvumira vadzidzi kuwana nguva yakawanda yekufamba uye kudzivirira kukanganiswa kwemamiriro ekunze. Isu tisu tinotungamira mutengesi uye mugadziri wezvivakwa zvesimbi muChina uye tinogona kukupa mhinduro dzinoshanda dzezvivakwa zvekambasi.

Main architectural mafomu

●Transportation hub mhando

Rudzi urwu rwekoridho kazhinji inzira iri nyore yakakwira. Mahwindo egirazi akagadzirwa kumativi ese kuti ape mwenje yemukoridho.

●Rudzi rwenzvimbo yeruzhinji

Iyo inowanzo sanganisa dhizaini yenzvimbo, ichiita kuti corridor isangova nzira asi yakawanda senzvimbo yekutandarira yevadzidzi. Isu tinogona kugadzira mapuratifomu akawanda kana akavharwa masikweya.

●Iconic landmark type

Chimiro chekoridho yese inoshandisa zvimiro zvakakura zveasymmetrical simbi, zvichiita kuti chivakwa chichinjike uye chitaridzike, uye chinogona kuve chicherechedzo chekare checampus.

Chigadzirwa chimiro chimiro

●Main Structure

Chimiro chikuru chesimbi chimiro campus corridor ndiyo huru inotakura-inotakura chimiro chechivako chose. Zvose zvinotakura zvinotakura zvinogoverwa pakati pezvikamu izvi. Iyo inonyanya kusanganisira H-yakaita simbi, rectangular simbi, kana truss zvimiro.

●Lower Floor System

Kazhinji, yakasimbiswa simbi truss floor formwork kana profiled simbi mahwendefa anoshandiswa, achiteverwa nekongiri kudirwa. Izvi hazviiti chete kuti tive nechokwadi chekubatanidzwa kwesimbi dzesimbi asiwo zvinobatsira kuvaka.

●Enclosure uye Kushongedza

Denga: Kazhinji, simbi dzedenga mapaneru kana mapaneru ekufambisa (chiedza chezuva / girazi) anoshandiswa kuwedzera kujeka.

Railings: Kazhinji inogadzirwa nesimbi isina tsvina, girazi, kana tambo dzesimbi, kuve nechokwadi chekuona kwakajeka uye kufambisa kuona kwevadzidzisi mamiriro ari pazasi pamukoto.

Product case

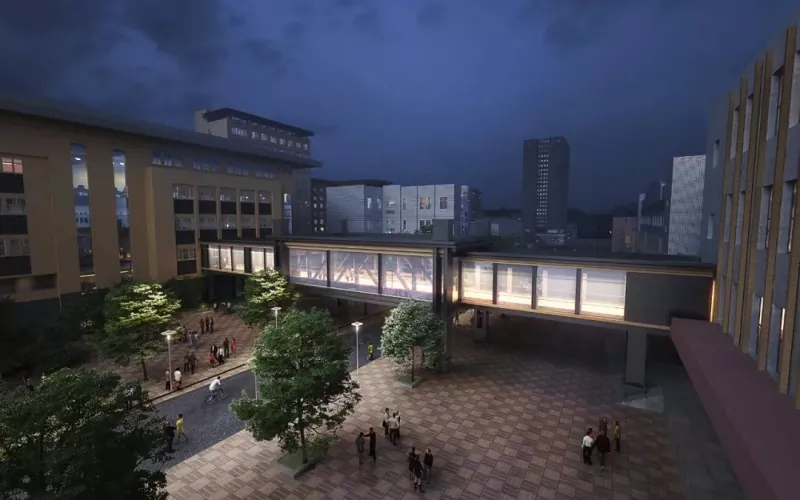

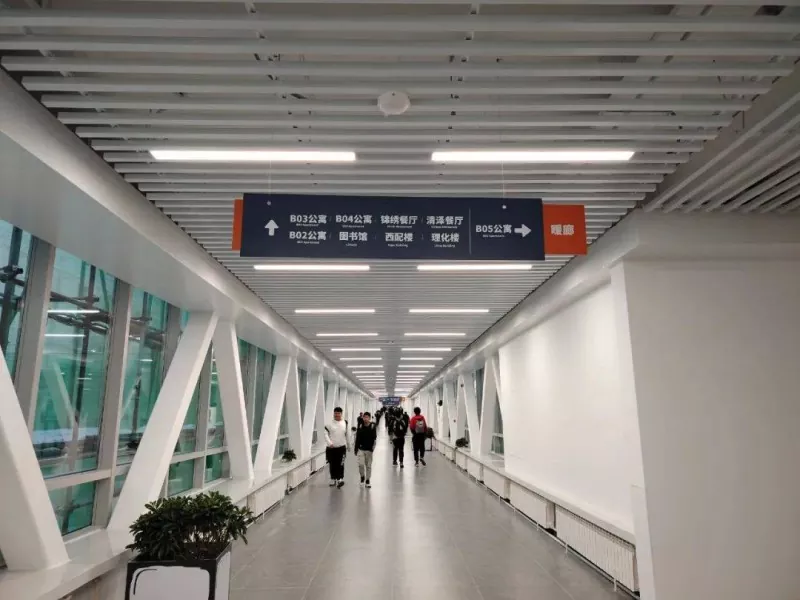

Warm Corridor yeHarbin Institute of TechnologyChimiro chemukoto unodziya chinonyanya kugadzirwa nesimbi. Nheyo yekugadzira ndeye "yenzvimbo yakasarudzika chimiro + yakavanzika kumashure". Kunyanya munzvimbo yepakati pekambasi, chimiro chekoridho inodziya inosimbisa maitiro ebhiriji resimbi uye nehungwaru inobatanidza zvinhu zvine maficha emuchadenga furemu, ichiratidzira mweya wemuchadenga uye maitiro akaomarara eHarbin Institute of Technology seyunivhesiti yakasimba yeinjiniya. Iro rakajeka uye rakajeka regirazi rejira remadziro rinosanganiswa nesimbi furemu, kwete chete kuvimbisa kuchengetedza uye span zvinodiwa zvechimiro, asi zvakare kuunza yakakwana chiedza chechisikigo, zvichibvumira vadzidzisi nevadzidzi kuti vafarire nzvimbo yechando kunze kwemukoridho pavanenge vachifamba mukati, kubvisa manzwiro ekudzvinyirira anounzwa nenzvimbo yakavharwa.

Parameter (Spication)

Mazano pamusoro pehurefu uye kuchengetedza dhizaini yemakoridho njanji

1. Kureba kwakadzikama kwesimbi hakufaniri kunge kwakaderera kupfuura 1.20 mamita. Kune akajairwa ekugara mabhakoni, njanji dzinowanzoita 1.10 metres.

2. Rutivi rwemambure pakati pematanda akamira enjanji haafanire kudarika 0.11 metres kudzivirira vadzidzi kuti vasakwira. Panguva imwecheteyo, dhizaini yesimbi inofanira kudzivisa kushandisa mbariro yakatwasuka kana mapatani ari nyore kukwira.

3. Kana nzvimbo iri pazasi Steel structure campus corridor iri nzvimbo yechiitiko chevadzidzi, zvingave zvakafanira kumisa mambure ekudzivirira kudonha kana maeaves kudzivirira kudonha kwetsaona kwezvinhu kubva mukukuvadza vanhu.
