Space Grid Steel Frame Zviteshi

Space Grid Steel Frame Zviteshi zvinoreva zviteshi zvakavakwa nesimbi spatial grid masisitimu. Simbi zvimiro zvinoratidzira zvakakosha zvinosanganisira hombe-span column-yemahara yekuvhara uye mwenje, yakajeka yekuvaka mhedzisiro. Senyanzvi yekugadzira simbi yekugadzira, EHSS inoona zvivakwa zveveruzhinji seimwe yezvikamu zvedu zvepakati zvebhizinesi.

Send Inquiry

Product Description

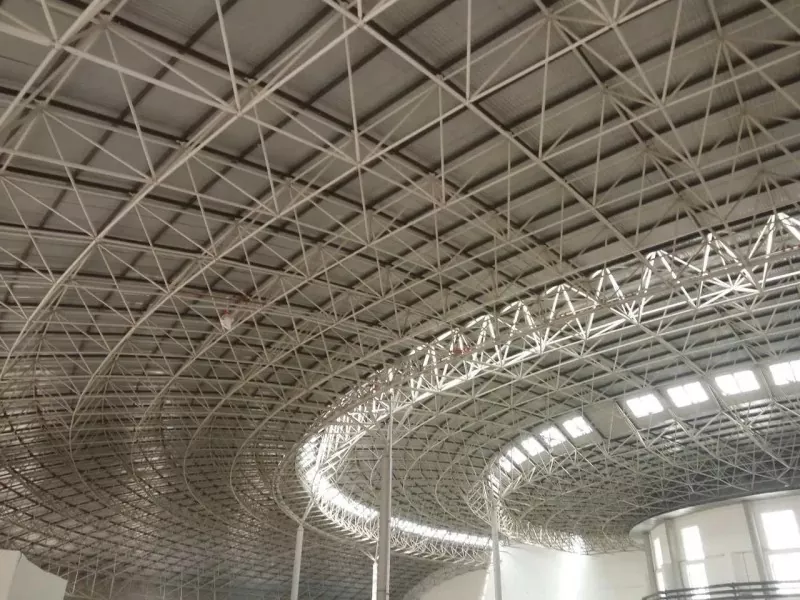

Space Grid Steel Frame Zviteshi zvakagadzirwa nefekitari yedu zvivakwa zvenjanji zvine simbi grid zvimiro zvakagamuchirwa kumatenga kana canopies. Iyo spatial grid chimiro chinopa maonero akafara uye akareruka akareruka aesthetics, ayo anoonekwa achivimba nesimbi zvivakwa. Sei zvivakwa zvesimbi? Simbi inogona sei kuita miuyo yakatanhamara yakadaro?

Key Dimension	Yakakosha Yakanakira Simbi Yakarongeka
Chiedza Weight & High Simba	Kupfuura 10 nguva yakasimba kupfuura kongiri, ine chete 3 times the density
Inoshanda Axial Force Transfer	Isotropic homogeneous zvinhu zvinoshandisa zvizere simba rekushandisa pahupfumi hwekushandisa simbi
High Form Flexibility	Inogonesa maumbirwo akaoma senge mafungu emafomu uye akakombama
Kuvimbika Joint Connections	Inoumba yakagadzikana 3D spatial load-bearing system ine nzira dzakajeka dzekufambisa simba
High Prefabrication Rate	Nhengo uye majoini zvakafanogadzirwa mumafekitori emhando inodzoreka uye yakakwirira yekuvakwa kwayo
Rapid Construction	Ground musangano pamwe nekusimudza kwakabatana kana bhaudhi gungano rinopfupisa nguva yekuvaka uye kuderedza kukanganiswa kwesaiti
Green & Sustainable	Simbi ndeye 100% inodzokororwa uye inochengetedza yakakwira yakasara kukosha mushure mehupenyu hwebasa rekuvaka, ichideredza marara ekuvaka.
High Seismic Redundancy	Nzira dzakawanda dzekutamisa mitoro dzinonatsiridza kusimba kwechimiro uye kudzivirira kudonha kwebrittle pasi pekudengenyeka kwenyika kwakasimba.

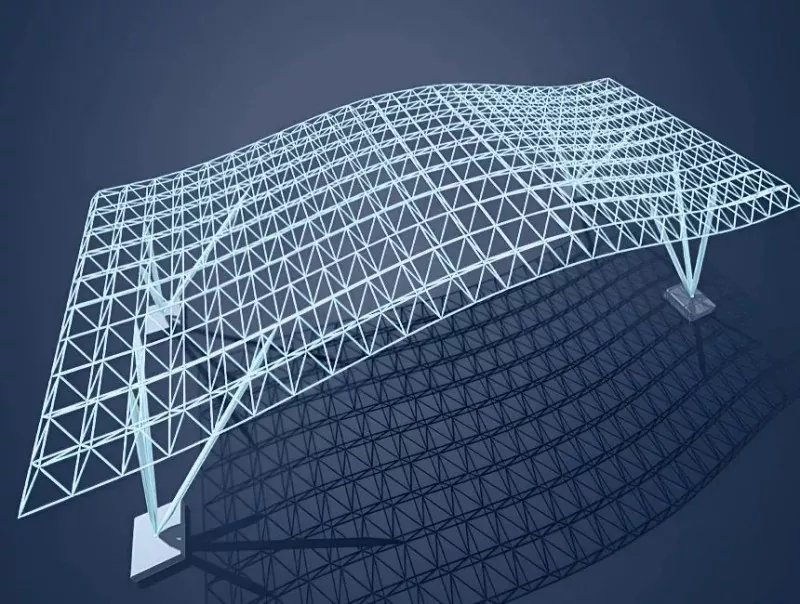

Spatial gidhi zvimiro zvinopa ekuvaka mhedzisiro yeakakura spans, huremu huremu uye yemahara-fomu styling. Zvivakwa zveSimbi zvine zvakanakira zvakanakira zvinosanganisira kusimba kwepamusoro, kuchinjika kukuru uye kuvaka kwakanyanya maindasitiri. Izvo zviviri zvinopindirana, zvichiita kuti zvive mhinduro yakakwana yezvivakwa zvemazuva ano zvakakura-refu. Kubatsirwa kubva kune ese ari maviri enzvimbo gidhi chimiro uye yakafanogadzirwa simbi chimiro, yedu Space Grid Steel Frame Zviteshi zvinomira pachena sesarudzo yakakurumbira yezvivakwa zvechiteshi.

Space Grid Steel Frame Stations

Core Applications

Yedu Space Grid Steel Frame Zviteshi zvinonyanya kuiswa mune ina mamiriro:

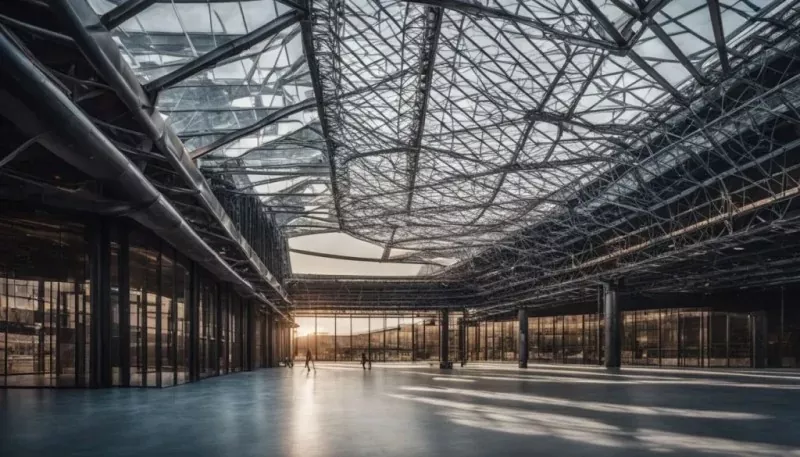

▷ Roof yeHoro yokumirira

▷ Platform Canopy

▷ Zvivakwa Zvikuru Zvekufambisa Hub

▷ Zvivakwa zvepakati uye Diki Yepamusoro-Sitima Chitima Chiteshi

Simbi zvivakwa zvivakwa zvakavakwa ne spatial grid zvimiro uye musanganiswa wazvo zvinonyanya kuwira mumapoka anotevera:

Structural Form	Applicable Scenarios
Inverted Square Pyramid Spatial Grid	Horo dzokumirira dzezvivako zvechiteshi chechitima chinomhanya zvikuru

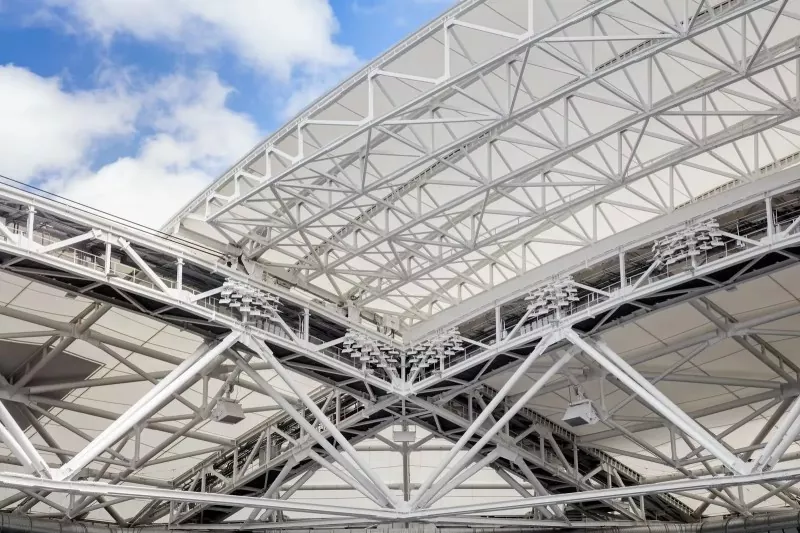

Spatial Pipe Truss	Mahombe echiteshi chekuvaka matenga
Composite System yeSpatial Grid & Transition Truss	Zvivakwa zvechiteshi zvine zvimiro zvakaoma
Space Frame	Platform canopies

Pamusoro pezvo, izvo zvakakosha zveSpace Grid Steel Frame Zviteshi zvinonyanya zvinosanganisira:

Chikamu Category	Common Materials
Spatial Grid Nhengo	Q235B/Q355B denderedzwa kana rectangular simbi machubhu
Welded Bhora / Bolted Bhora Majoini	Mabhora akasungwa (Q355B) / Mabhora akaboorwa (45# simbi)
Chords uye Webhu Nhengo dzeSpatial Pipe Trusses	Round simbi chubhu (Q355B)
Cast Steel Joints	Kanda simbi zvikamu
Roof Panels	Aluminium-magnesium-manganese mapaneru / Mahwendefa esimbi akadhindwa ane thermal insulation layer
Masikati eMazuva	Polycarbonate panels / Girazi

Technical Specifications & Chiitiko cheProjekiti

Iwo akakosha matekinoroji eSpace Grid Steel Frame Zviteshi anosanganisira synchronous hydraulic kusimudza kana kutenderera kusimudza, tembiricha yekudzora majoini esimbi yakakandwa, uye yakasanganiswa yekuongorora inosanganisa BIM uye point Cloud tekinoroji. Icho chigadzirwa chemazuva ano chakakura-chakawanda chekuvaka chinobatanidza chimiro chekushongedza uye nzvimbo inoshanda.

Item	Parameter
Structural System	Inverted square piramidi spatial grid / spatial pombi truss / nzvimbo furemu
Steel Giredhi	Q235B/Q355B, ASTM A572 Gr.50, nezvimwewo.
Joint Type	Welded bhora majoini / bolted bhora majoini / akakanda simbi majoini
Connection Method	Welding / yakakwirira-simba bhaudhi yekubatanidza
Tsigira Type	Multi-point rutsigiro pamativi mana ezasi chord / column rutsigiro
Kudzika Kwemaitiro	1.75–3.8 m
Dhizaini Yebasa Hupenyu	50 makore
Seismic Kusimbisa Kusimba	Grade 7–9
Kuvaka Technology	Synchronous hydraulic kusimudza / kutenderera kusimudza

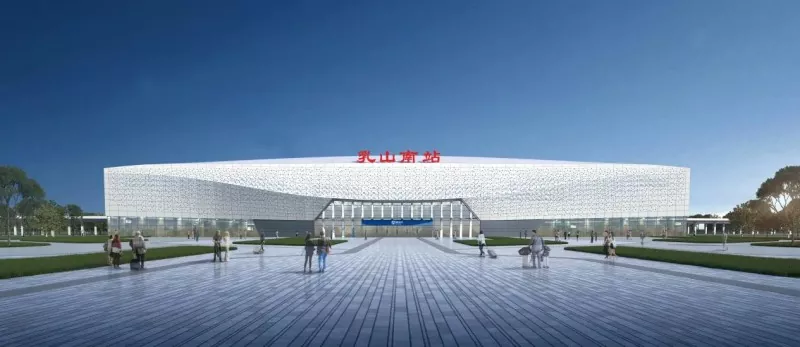

Rushan South Station muWeihai, nzvimbo yakakosha yekufambisa paLaiyang-Rongcheng High-Speed Railway yakavakwa neEHSS, inotora dhizaini yakakwenenzverwa nenzvimbo yekuvaka yakazara zviuru gumi zvemamita. Chivako ichi chine horo yekumirira, nzvimbo dzebasa revatakuri, mahofisi nemakamuri emidziyo. Denga rayo rinotora simbi yegridi chimiro, imwe fomu yesimbi spatial grid system, zvichiita kuti chirongwa ichi chive chakajairwa cheSpace Grid Steel Frame Stations chigadzirwa.

Space Grid Steel Frame Stations

FAQ

Q1: Ndeipi seismic kuita kwenzvimbo grid chimiro zviteshi?

Iyo space grid chimiro ine inherent yakanaka seismic kugona. Yakasanganiswa nehunyanzvi hwedu hwekuvaka, zviteshi zvatinoendesa zvinowana hukuru hwekuita seismic.

Q2: Ndeupi misiyano pakati penzvimbo grid zvimiro uye planar trusses?

Space grid zvimiro zvinoshandisa simbi shoma uye zvinounza kuomarara kwepamusoro kune imwechete inotenderera inodiwa.

Q3: Ko nzvimbo grid chimiro zviteshi zvingapfupisa nguva yekuvaka?

Kugamuchirwa kwe hydraulic synchronous kusimudza tekinoroji kunoderedza zvakanyanya maawa ekushanda pakureba.

Q4: Ndeipi yakakura inogoneka span yenzvimbo grid chimiro zviteshi?

Inverted square pyramid space grid inovhara chiteshi chekumirira mahoro ane spans ye40-90 m. Composite system ye spatial tubular truss plus space grid inogona kuona denga remba pa 100-metres level.

Q5: Unogona here kuvaka zviteshi zvinoenderana neEurocode uye AISC zviyero?

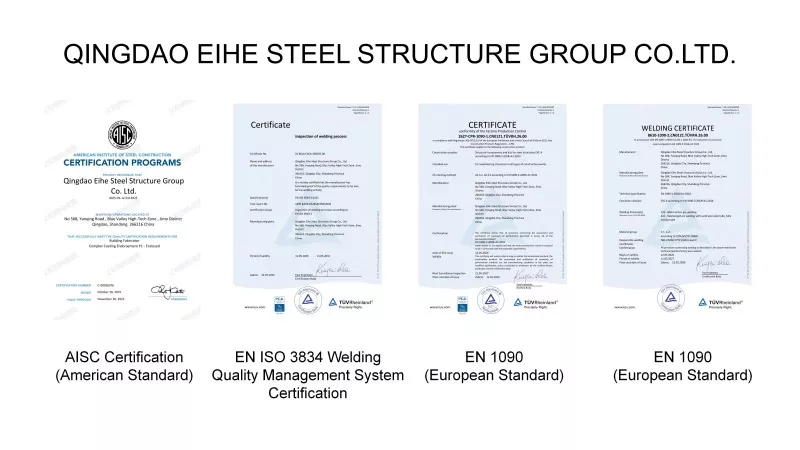

Isu tinobata CE, ISO uye AISC zvitupa. Yedu Space Grid Steel Frame Zviteshi zvinogona kuita zvizere zvaunoda.
