Huru Span Steel Space Frame Stadium

Huru Span Steel Space Frame Stadium isimbi yemitambo nzvimbo inoratidzirwa ne "hombe span" uye "space frame". Zvigadzirwa zvinogadzirwa neEIHE Steel Structure (EHSS) zvinoshandiswa zvakanyanya muzvivakwa zveveruzhinji senge nhandare dzakakura, nzvimbo dzekurovedza muviri uye nzvimbo dzekokorodzano & dzekuratidzira. Semutengesi wemhando yepamusoro, isu tinosimudzira kuzvipira kwedu kwepakutanga kune mhando mune zvigadzirwa zvedu zvesimbi uye tinoedza kuunza zvakakosha zvehupfumi mabhenefiti kwauri.

Send Inquiry

Product Description

Iyo Large Span Steel Space Frame Stadium inotora space furemu sisitimu sedenga rayo rinotakura mutoro, ichigonesa imwe-hombe span nzvimbo.

Zvivako zvinogadzirwa neEHSS fekitori zvakashongedzerwa nekaviri-layer denga, kupisa uye kuvharisa inzwi, kudzivirira moto uye anti-corrosion masisitimu, pamwe nehungwaru hwekudhiraivha system, ine chitarisiko chakapfava uye chinoyevedza chine nzvimbo yakakura yemukati.

Zvigadzirwa zvedu zvinozvirumbidza zvakawedzerwa-yakakura span, yunifomu yekushushikana kugovera, yakakwira simba rose uye nekukurumidza kuvaka kumhanyisa, zvichiita kuti vakwikwidze zvakanyanya mumusika.

Dimension	Core Advantage
Span Capacity	30–200m
Steel Consumption	25–65 kg/m²
Kubudirira Kwemari	380–1,800 RMB/m²
Prefabrication Rate	90%+
Joint Precision	Kushivirira ≤ ± 0.5mm
Quality Control	Kirasi 1 Welds

Kunyangwe iwe uchifunga kuvaka yepasi rose yakamisikidzwa Yakakura Span Steel Space Frame Stadium mukati kana mhiri kwemakungwa, tinogona kukusvitsa iwe. EHSS yakawana zvitupa mune zvinoenderana nedzimwe nyika dzeEurope neUnited States.

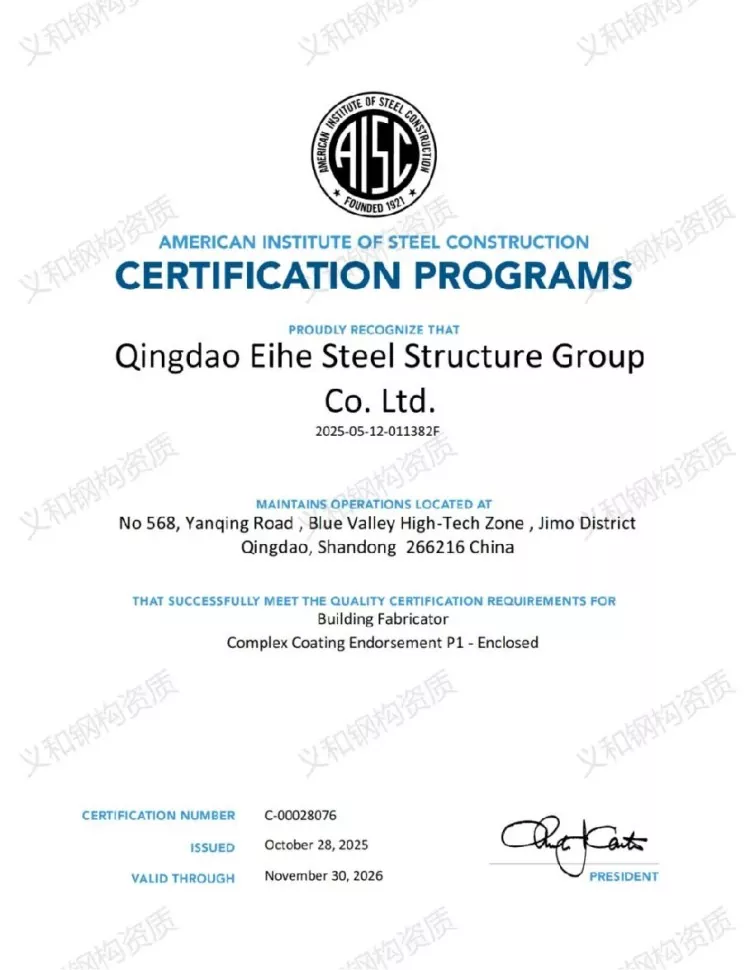

● American Standard

American Standard

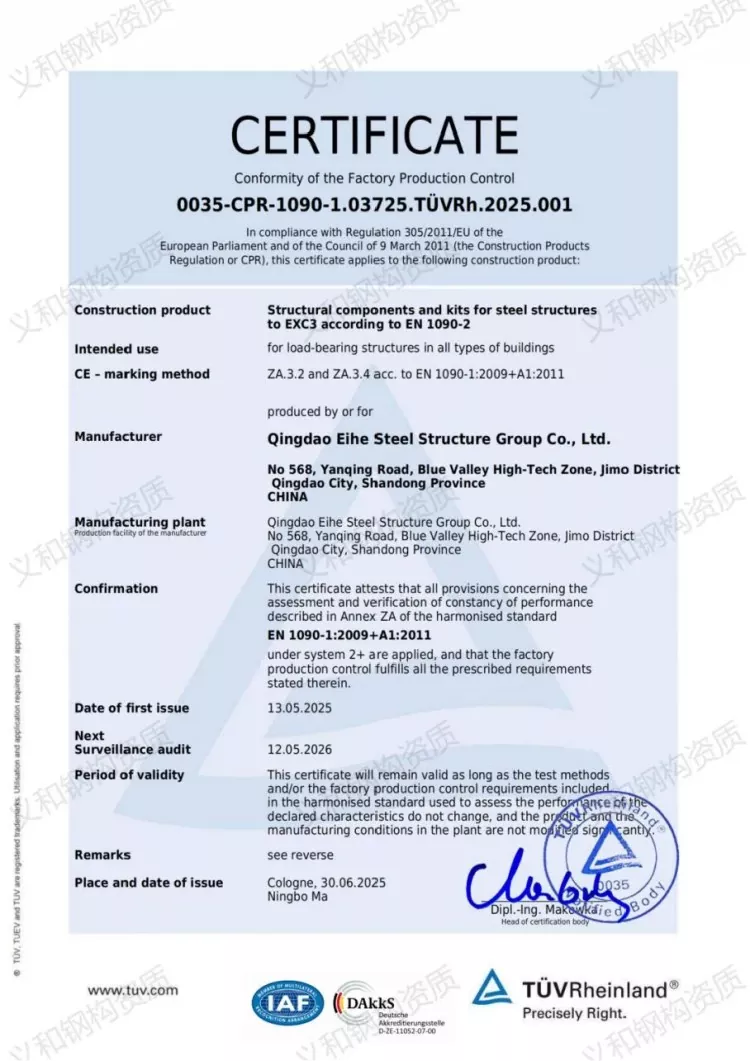

● European Standard

European Standard

Zvinotaurwa Nezvehunyanzvi

Iyo Large Span Steel Space Frame Stadium inopa matambudziko nekuda kweiyo yakareba-span dhizaini, inoda yakakwirira tekinoroji paramita.

Parameter Chinhu	Technical Index
Span Range	30–200 m
Grid Size	2.5–4.0 m
Height-span Ratio	1/8–1/15
Kutsanangurwa Kwenhengo	Circular simbi chubhu
Joint Type	Bhora rakasungwa / Bhora rakasungwa
Steel Giredhi	Q235B / Q355B
Deflection Control	≤ L/250
Roof Mutoro	0.3–0.6 kN/m²
Seismic Resistance	Grade 8
Mhepo Resistance	Grade 12
Moto Resistance	Kirasi II
Anti-corrosion Kurapa	Hot-dip galvanizing / Three-layer coating
Dhizaini Yebasa Hupenyu	50 makore

Sechigadzirwa chinokwanisa kuwana nzvimbo huru pasi rose munhandare dzakakura, Large Span Steel Space Frame Stadium chikamu chine mukurumbira pakati pezvivakwa zvikuru zveveruzhinji zvakavakwa neEHSS.

Kuburikidza nehunyanzvi hwehunyanzvi uye dhizaini ine hunyanzvi, zvigadzirwa zvedu zvinochengetedza zvinhu zvesimbi zvakanyanya, zvichikupa iwe mamwe magadzirirwo ekuvaka anodhura.

▷ Reference Price

Type	Steel Consumption	Mutengo (kusanganisira kuiswa)
Yakajairika nzvimbo furemu	35–55 kg/m²	450–950 RMB/m²
Special-shaped & yakaoma nzvimbo furemu	50–80 kg/m²	700–1,600 RMB/m²
Comprehensive	45–65 kg/m²	7,000–9,000 RMB/T
